THE HAGUE, 9 January 2025. RESONIKS studies the intersection of acoustics and wave mechanics to perform Acoustic Resonance Testing, or ART. But did you know that you can use these same principles of wave mechanics to create actual art? This phenomenon, called Chladni patterns, where vibration creates geometric patterns, provides a rare glimpse into the invisible mechanics of sound.
What Are Chladni Patterns?
Chladni patterns occur when sound vibrations cause a surface to resonate, creating areas of movement and stillness. When a thin plate is vibrated, such as with a bow or speaker, particles (most of the times sand) arrange themselves along nodes, which are regions where the surface remains still. The result is stunning geometrical patterns.
This phenomenon is named after Ernst Chladni, an 18th-century physicist who was fascinated by how sound shapes its environment. These patterns are a direct representation of standing waves, which form on the surface as a result of vibration at specific frequencies.

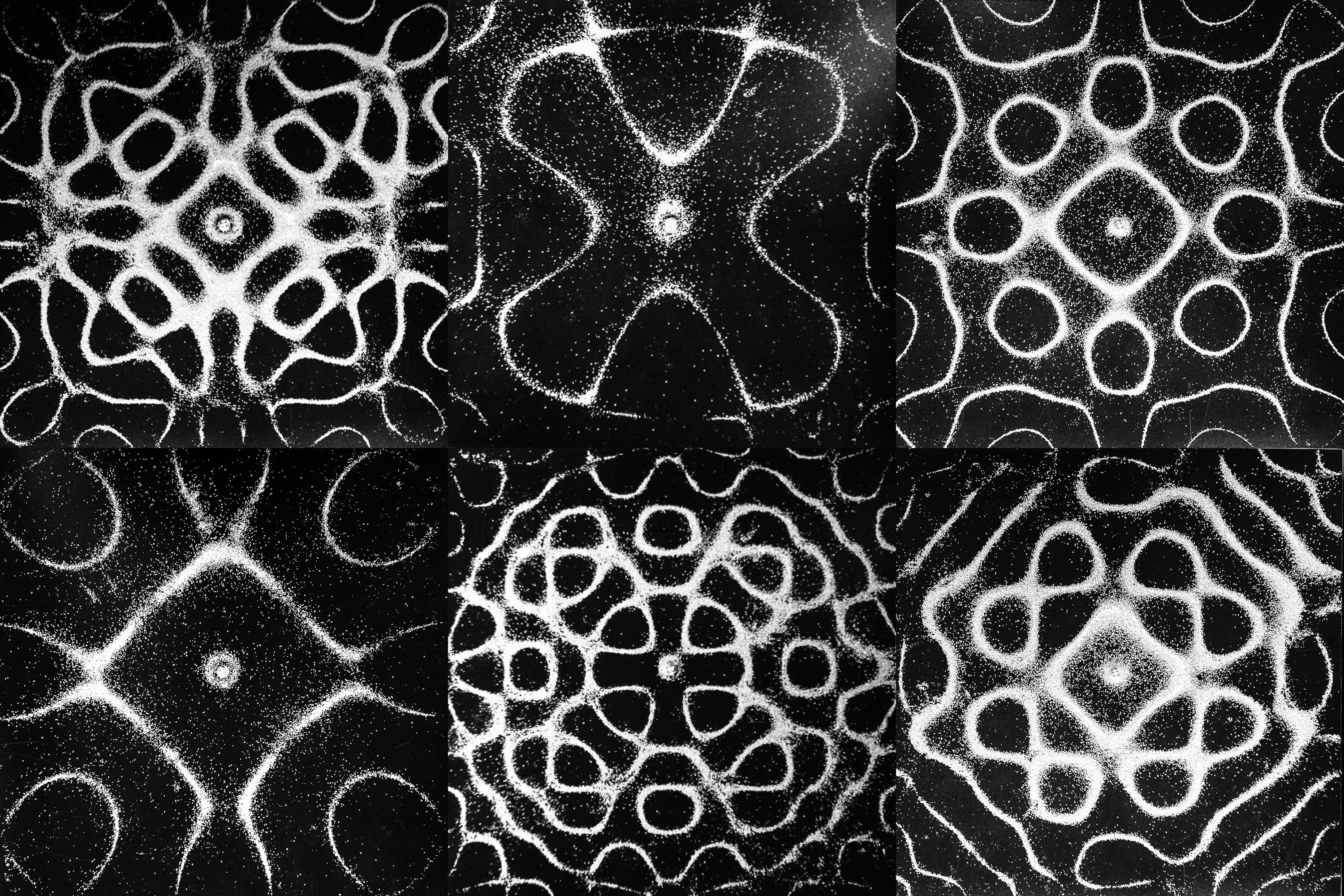

“Day 19: Chladni Plates” Image by Chris Smith via Flickr
Copyrighted under CC BY-NC-SA 2.0
How Chladni Patterns Work
To create Chladni patterns, the surface generates standing waves. A standing wave forms when two identical waves travel in opposite directions and overlap, producing stable regions of no vibration (nodes) and maximum vibration (antinodes). Nodes are the areas of complete destructive interference, where the particles gather, since there is no motion.
The shapes created by Chladni patterns depend on several factors: the material of the surface, its shape, and most importantly, the frequency of vibration. The complexity of the pattern depends on the frequency of vibration. Higher frequencies produce more intricate designs, while lower frequencies create simpler, broader shapes. These patterns give a visual representation of how sound waves behave on a surface.
Here is a breakdown of the phenomenon:
Standing Waves Form: When the plate vibrates at a certain frequency, sound waves travel across the surface and reflect back, creating standing waves.
Nodes and Antinodes Appear: The plate has regions where no motion (nodes) and intense motion (antinodes) occur.
Particles Settle on Nodes: Small particles on the plate, such as sand or powder, naturally gather along the nodes, outlining the standing waves and revealing the sound wave's structure.
These standing waves, nodes, and antinodes are the backbone of the fascinating geometric patterns seen in Chladni’s experiments. Here is a video example:
The Intersection of Wave Mechanics and Acoustics
Chladni patterns offer a rare visual representation of sound waves. By visualising the interaction between sound and material, they illustrate how sound waves and frequencies shape the physical world. RESONIKS uses similar principles in acoustic non-destructive testing (NDT) techniques. By using frequencies to create a tangible twin of components, we practice a unique application of sound visualisation. Although invisible to the naked eye, sound waves can be used in a wide variety of applications, from manufacturing NDT to actual art.
