MPK801 Multi-Channel

Many microphones. One synchronized array.

Many microphones. One synchronized array.

The ARK141 Sensor Hub synchronizes every MPK801 in the array to within 100 ns, so you can compare and combine channels with confidence. Up to 14 microphones per hub.

The ARK141 Sensor Hub synchronizes every MPK801 in the array to within 100 ns, so you can compare and combine channels with confidence. Up to 14 microphones per hub.

From €5,831

Configure & Buy

See pricing

RESONIKS ARK141 Sensor Hub, showing its fourteen M12 microphone ports
The Sensor Hub

One hub replaces the multi-channel front end

One hub replaces the multi-channel front end

Built for industrial environments, not just your desk. Full environmental ratings in the datasheet.

Built for industrial environments, not just your desk. Full environmental ratings in the datasheet.

The ARK141 Sensor Hub connects up to 14 MPK801 microphones, delivering power and data to each one over a single Sensor Cable and keeping every channel synchronized to within 100 ns. At its core, the ARK141 is an Ethernet switch that doubles as the master clock, distributing sync to every connected microphone. No per-channel preamp rack, no multichannel converter - just add a mic to add a channel.

The ARK141 Sensor Hub connects up to 14 MPK801 microphones, delivering power and data to each one over a single Sensor Cable and keeping every channel synchronized to within 100 ns. At its core, the ARK141 is an Ethernet switch that doubles as the master clock, distributing sync to every connected microphone. No per-channel preamp rack, no multichannel converter - just add a mic to add a channel.

Development Kits from €5,831

Development Kits from €5,831

The Microphone

Ruggedized precision broadband measurement microphone

Ruggedized precision broadband measurement microphone

Precision engineered, with the durability to go from the bench to the factory floor. Full environmental ratings in the datasheet.

Precision engineered, with the durability to go from the bench to the factory floor. Full environmental ratings in the datasheet.

The MPK801 simplifies audio capture and reduces array costs. Pre-calibrated and compensated microphones deliver high-quality data up to 80 kHz, consistent to ±0.5 dB from unit to unit, so channels are directly comparable. Industrial M12 cables carry data and power to each microphone on a single connection to the ARK141 Sensor Hub. Calibration data lives on each microphone and is applied automatically, so a replacement drops straight in with no recalibration and no model retraining.

The MPK801 simplifies audio capture and reduces array costs. Pre-calibrated and compensated microphones deliver high-quality data up to 80 kHz, consistent to ±0.5 dB from unit to unit, so channels are directly comparable. Industrial M12 cables carry data and power to each microphone on a single connection to the ARK141 Sensor Hub. Calibration data lives on each microphone and is applied automatically, so a replacement drops straight in with no recalibration and no model retraining.

Pricing

Your total is built from one ARK141 Sensor Hub plus the number of MPK801 microphones you need, from 2 to 14. You set the microphone count on the next step and calculate the total.

Your total is built from one ARK141 Sensor Hub plus the number of MPK801 microphones you need, from 2 to 14. You set the microphone count on the next step and calculate the total.

Custom configuration

Custom configuration

Starts at 1× ARK141 + 2× MPK801, adjustable up to 14 mics per hub.

Starts at 1× ARK141 + 2× MPK801, adjustable up to 14 mics per hub.

Priced to your build

Priced to your build

  • 1× ARK141 Sensor Hub

  • 2 to 14× MPK801 Precision Measurement Microphones (priced per microphone)

  • Launch offer: 15% off, applied automatically

  • 1× ARK141 Sensor Hub

  • 2 to 14× MPK801 Precision Measurement Microphones (priced per microphone)

  • Launch offer: 15% off, applied automatically

Configure & Buy

For reference

For reference

A four-microphone array (1× ARK141 Sensor Hub and 4× MPK801) comes to €7,497 at the launch price.

A four-microphone array (1× ARK141 Sensor Hub and 4× MPK801) comes to €7,497 at the launch price.

Scaling beyond one hub

Scaling beyond one hub

Daisy-chain hubs over Ethernet and bridge cable to scale to 100+ microphones, with no loss of timing accuracy (coming soon).

Daisy-chain hubs over Ethernet and bridge cable to scale to 100+ microphones, with no loss of timing accuracy (coming soon).

Larger orders

Larger orders

Larger arrays, higher volumes and distributor enquiries are welcome — request a formal quote.

Larger arrays, higher volumes and distributor enquiries are welcome
request a formal quote.

Software & Data Integrity

Built for data you can trust

Built for data you can trust

The MPK801 is engineered around the integrity of your data stream. Built-in packet-loss tracking means you always know your recording is complete, and heartbeat monitoring flags any microphone the moment it stops reporting - so nobody has to check by hand whether data is still arriving.

Heartbeat monitoring - a failed unit is identified by name the moment it stops reporting

Packet-loss tracking for verified, complete recordings

On-sensor calibration data, applied automatically. Swap a unit and keep measuring, with no recalibration and no model retraining

Linux audio driver (ALSA) - one input device, one channel per microphone, no per-device enumeration

A Windows driver and a Python API will be available at the end of 2026.

Applications

Independent MPK801s give you parallel measurements. Synchronization through the ARK141 gives you three things they can't.

Independent MPK801s give you parallel measurements. Synchronization through the ARK141 gives you three things they can't.

Cross-asset correlation

Build models that recognise when event B on machine 2 reliably follows event A on machine 1. Synchronization within 100 ns captures timing relationships across separate assets, not just within each one.

Cross-sensor validation to reduce false positives

Simultaneous, correlated readings from multiple positions confirm real events rather than firing on any one microphone's noise. Independent recordings cannot do this; synchronized ones can.

Spatially-diverse dataset generation

Capture the same acoustic event from multiple angles at the same instant. Richer training data than single-microphone datasets can produce, at a fraction of traditional multi-channel DAQ cost.

Specifications

MPK801 in a synchronized array

MPK801 in a synchronized array

Acoustic performance is identical whether an MPK801 runs standalone or in an array. What changes is how it is connected, powered and synchronized — shown first below.

Acoustic performance is identical whether an MPK801 runs standalone or in an array. What changes is how it is connected, powered and synchronized — shown first below.

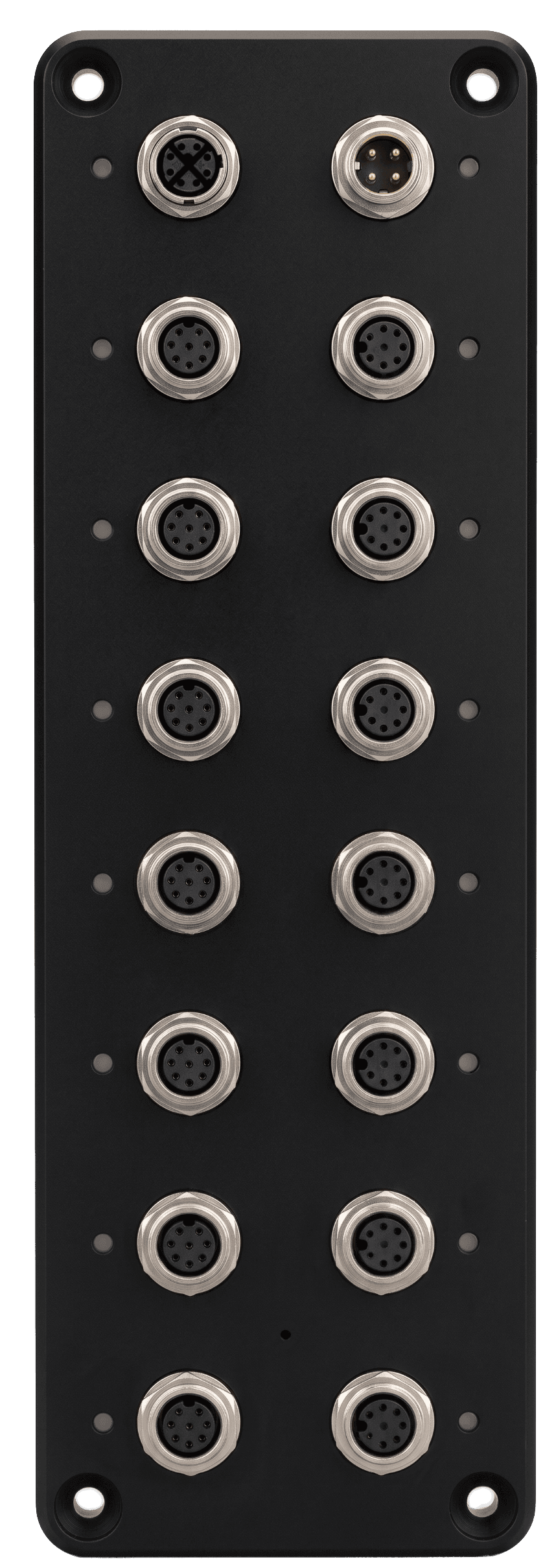

Close-up of the RESONIKS ARK141 Sensor Hub M12 connector panel
Close-up of the RESONIKS ARK141 Sensor Hub M12 connector panel
Close-up of the RESONIKS ARK141 Sensor Hub M12 connector panel
RESONIKS MPK801 — what changes in an array
Synchronization accuracy
Within 100 ns (requires ARK141 Sensor Hub)
Microphones per synchronized array
Up to 14 per hub
Connection
Single M12 Sensor Cable to ARK141 (data and power)
Unit-to-unit consistency, compensated
±0.5 dB
Calibration
Stored on each sensor, applied automatically

Acoustic performance, sampling, dimensions and environmental ratings are identical to standalone — see the Single-Channel specifications.

RESONIKS ARK141 Sensor Hub — key specifications
Sensors per hub
Up to 14
Sensor connections
14× M12
Network
Ethernet
Power input
12–48 VDC, ≥30 W
Dimensions
230 × 75 × 38 mm, 800 g
Housing
Aluminium, IP54
Mounting
M4 screws (4 pcs)
Operating temperature
−40 °C to 50 °C

For the full parameter set and wiring diagrams, see the datasheets.

For the full parameter set and wiring diagrams, see the datasheets.

Download MPK801 datasheet

Download ARK141 datasheet

Ready to configure your array?

Ready to configure your array?

Start from 1× ARK141 and 2× MPK801, and add microphones as needed.

Start from 1× ARK141 and 2× MPK801, and add microphones as needed.
